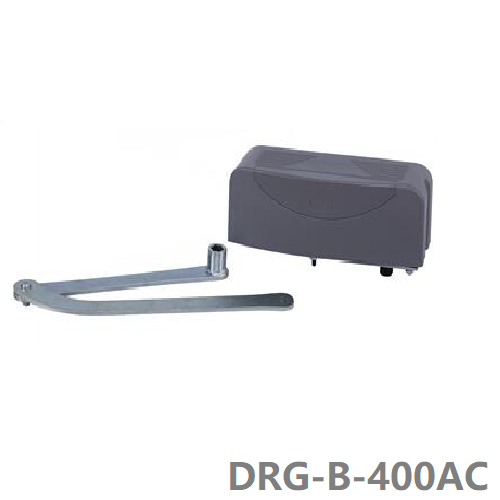

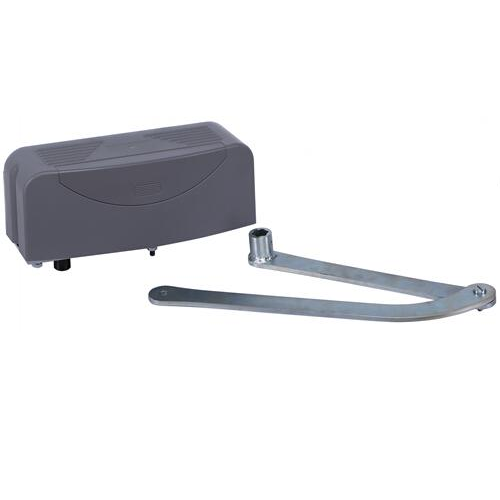

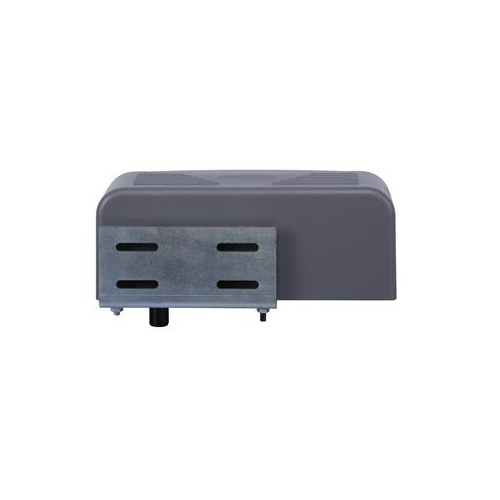

DRG-BAC Swing gate opener

  • Power supply:220VAC,50Hz/110VAC,60Hz
  • Max.single leaf weight:400kg/leaf
  • Limit switch:mechanical limit switch
  • Max. single leaf length:3m
  • Product description: Swing gate opener also sometimes named as automatic swing gate or automatic swing gate opener. The swing gate motor has DC motor and AC motor two types. The swing gate openers is an electric gate ope
  • INQUIRY   EMAIL


Swing gate opener also sometimes named as automatic swing gate or automatic swing gate opener. The swing gate  motor has DC motor and AC motor two types. The swing gate openers is an electric gate opener to open the drive way gate.From power input type, Deren could also offer electric swing gate opener or solar gate opener.

Products Features :

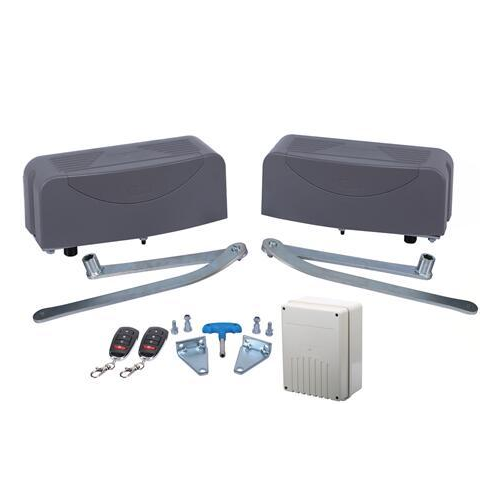

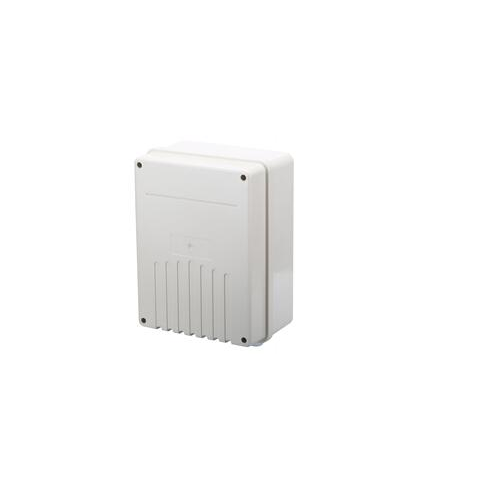

1. Available for installing 2 opener with a single control box.

2.Integrated mechanical limit switch that permits to eliminate the ground stops.

3.Travel time protection, when the mechanical limit switch failure, travel time protection allow the gate open standardly 30s.

4. Optional auto-close function

5.Soft start and slow stop function, smooth operation and low noise

6. Automatic learning for remote control

7.Key pad/single button interface.

8.Alarm lamp, photo beam& safety beam interface

9.Manual release design for emergency use.


Specification


Model

DRG-B400AC

Input voltage

AC220±10%50Hz/AC110V±10%60Hz

Motor power

260W

Max. Loading weight

400kg/leaf

Driving method

Screw driven piston type

Limit switch

Mechanical limit switch

Max. Single leaf length

3m

Gate moving speed

9-11°/s

Remote control range

≥30m

Remote frequency

433.92MHz

Work duty

S2 15min

Package weight

Motor 26kg, control unit 2kg

Dimension(L*W*H)

358.5*168*186mm
