DRZ206 Barrier Gate

  • DRZ206 Barrier Gate
  • DRZ206 Barrier Gate
DRZ206 Barrier GateDRZ206 Barrier Gate

DRZ206 Barrier Gate

  • Rapid opening:0.8-5s
  • Arm length<6m

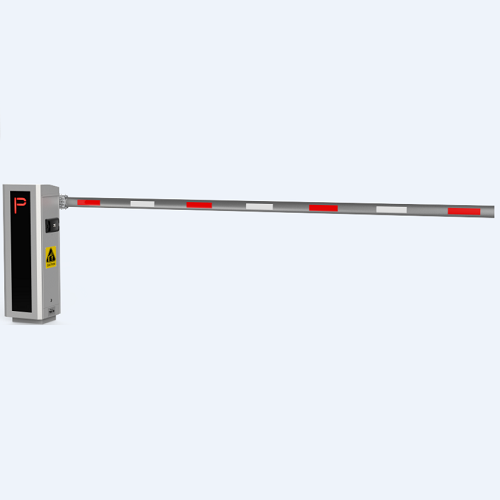

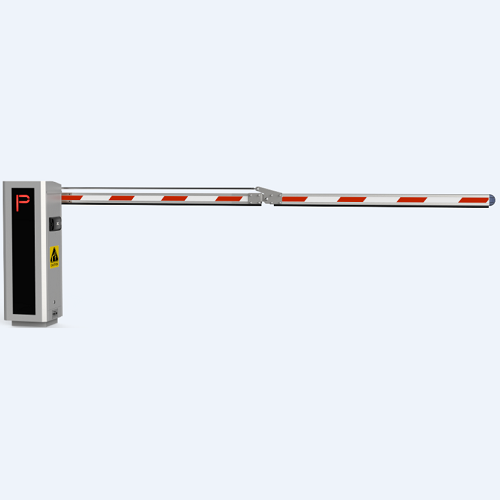

  • Arm type: Straight/Folding/Luminous
  • Dimension (L*W*H):385x340x1070mm
  • Product description: Deren smart boom barrier gates are appliable in commercial and industrial application, such as parking lots and garages to control the access of vehicles
  • INQUIRY   EMAIL

Products Features :

1.Key Features:

P-shaped guidance breathing light--When the gate is closed/open/in motion, the red/green/flashing light is on--mean "waiting"/ "passing"/"warning" respectively

DC drive bushless motor--smoothly handle high-frequency use of commercial premises

◆Collocation of boom pole lengths and boom types to meet different needs

Optimized structure design--dimensions optimized for transport on pallets and fast installation

◆Adopt non-contact monitoring & control technology -- operation is stable and jitter-free.


2. Robust:
◆ High-strength carbon steel splicing frame-overall structure is solid and reliable
◆ Brand-new spraying process-uniform color, high saturation, high hardness layer for improving corrrosion resistance and weather resistance
◆ Integrated movement design- gate runs stably and core components are resistant to wear
3. Safe & Reliable:

Boom auto rebound protection-detect obstruction and boom rebound
Operation jam protection-the control system can automatically reduce the voltage and
current to prevent the motor from being burned out
Comprehensive anti-crushing protections: infrared anti crushing, radar anti crushing, digital
anti crushing, loop detector for anti crushing
Digital control technology - protect gate operation in whole process, such as boom
limit position protection, ambient temperature compensation protection, anti-blocking
protection, illegal lifting alarm and record, etc.
4.Four Opening Methods

◆ Gate boom opened by loop detector
◆ Gate boom opened by PMS (“Parking Management System”) software
◆ Gate boom opened by remote control
◆ Gate boom opened by motor (There is a knob on motor and only be used in emergency)

Electric Specifications

Power supply

AC220±10%,50Hz;AC110±10%,60Hz

Operating Temperature

-25℃~70℃

Relative Humidity

≤95%

Motor Power

150W

Communication Interface

IO

MCBF

3 mio cycles

IP Rating

IP54

Height of Boom

930mm

Dimension (L*W*H)

385x340x1070mm
