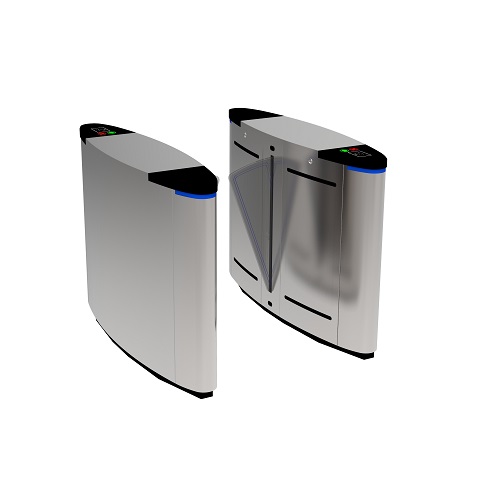

Wing gate

  • Dimension:1210x185x960mm
  • Passage width 600mm
  • Input voltage:100-240v
  • Product description: Deren offer full line turnstiles include wing gate(flap barrier gate), speed gate, swing gate, tripod, waist height turnstile, sliding gate,full height turnstiles.
  • INQUIRY   EMAIL

Deren offer full line turnstiles include tripod,speed gate, wing gate, swing gate, waist height turnstile, sliding gate,full height turnstiles which could be compatiable to integrate any access control system. Deren turnstiles can be mounted with display, passage counter, card reader, token operation traffic lights, command console,alarm system against unauthorized entries where needed.

Technical features:


Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

• Display has been in use for statistics and numbers

• With voice and strobe light alerts

• A combination of infrared sensors and police antiillegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

• Double anti-clipping function, photocell anticlipping and mechanical anti-clipping

• Auto re-set function, if no passing during identified card-reading time,the system will reset automatically the passengers are prohibited to pass until their second identified reading

• The barrier can be set to delay closing in 1-60s after a valid card-reading

OPERATING MODES

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked

MATERIALS

• Housing: Made in metal sheet and painted with 20/IO, or in stainless steel AISI 304 o AISI316.

• Barrier swings-Plastic plate, toughened glass, stainless steel frame.

• Lid(optional)--stainless steel or artificial stone(black/brown)

COLOURS&FINISHES

• High quality powder coating plus lacquered finish

• Dark grey colour high quality powder coating plus lacquered finish

• Sandpaper powder coating with pearl mica effect
