Tripod

  • Tripod Turnstiles
  • Tripod Turnstiles
  • Tripod Turnstiles
Tripod TurnstilesTripod TurnstilesTripod Turnstiles

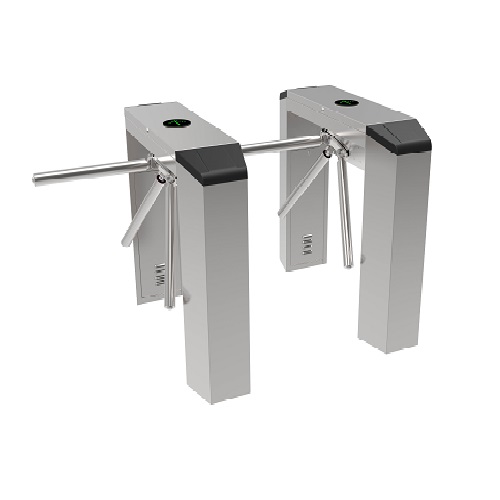

Tripod Turnstiles

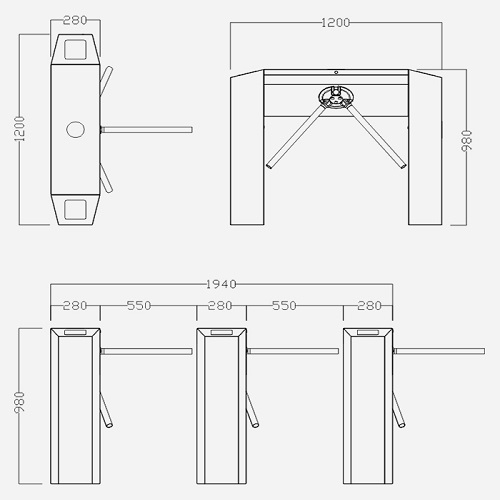

  • Dimension 1200*280*960mm
  • Passage width ≤550mm
  • Operational voltage 24v
  • Product description: Deren offer full line turnstiles include speed gate, wing gate, swing gate, tripod, waist height turnstile, sliding gate,full height turnstiles.
  • INQUIRY   EMAIL

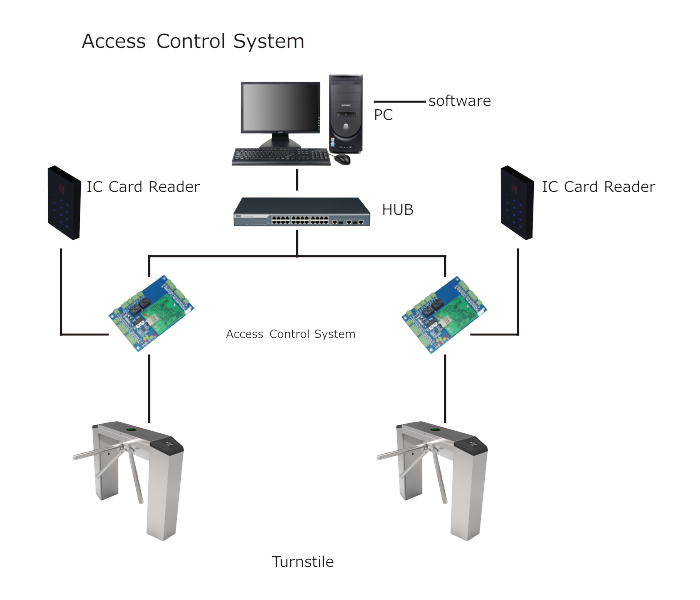

Deren offer full line turnstiles include tripod,speed gate, wing gate, swing gate, waist height turnstile, sliding gate,full height turnstiles which could be compatiable to integrate any access control system. Deren turnstiles can be mounted with display, passage counter, card reader, token operation traffic lights, command console,alarm system against unauthorized entries where needed.The unique dropping arm feature of Deren tripod provides a fail safety solution in case of an emergency or power failure.

Technical features:

CONTROLLER

• Semi-auto mode:After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Full-auto mode:The passenger pushes the arm at a little strength after reading card,and the arm will automatically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.

• Adjustable time out delay.

OPERATING MODES

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked

MATERIALS

• Housing:Made in metal sheet and painted with 20/IO, or in stainless steel AISI 304 or AISI316.

• Barrier swings-Plastic plate, toughened glass, stainless steel frame.

• Lid(optional)--stainless steel or artificial stone(black/brown)



COLOURS&FINISHES

• High quality powder coating plus lacquered finish

• Dark grey colour high quality powder coating plus lacquered finish

• Sandpaper powder coating with pearl mica effect
