Sliding gate opener

DRB Sliding gate opener (AC)

Power supply:220VAC,50Hz/110VAC,60Hz
Max.loading weight：600kg,800kg,1000kg,1500kg,2000kg.
Gate moving speed：11-13m/min
Limit switch type: magnetic/spring
Product description: Deren offer stable quality residential and commercial gate opener systems The key parts of sliding gate opener compose sliding gate motor, sliding gate track, sliding gate wheels, sliding gate roller
INQUIRY EMAIL

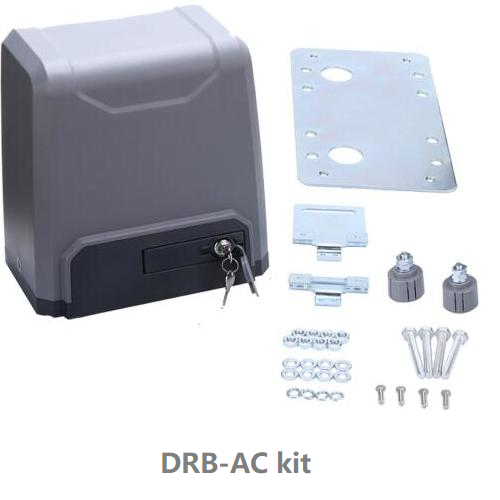

Gate opener include sliding gate opener and swing gate opener. The key parts of sliding gate opener compose sliding gate motor, sliding gate track, sliding gate wheels, sliding gate roller, sliding gate lock those often named as sliding gate kit and gate hardware.

The gate motor could DC motor or AC motor, or the power supply could be sunlight power.

From gates materials, the sliding gate design has wooden sliding gate, steel sliding gate, metal sliding gate

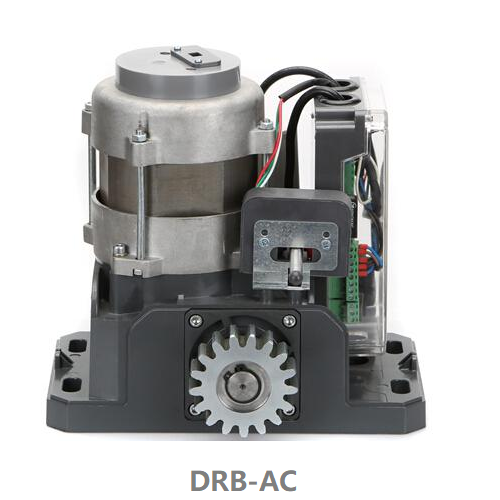

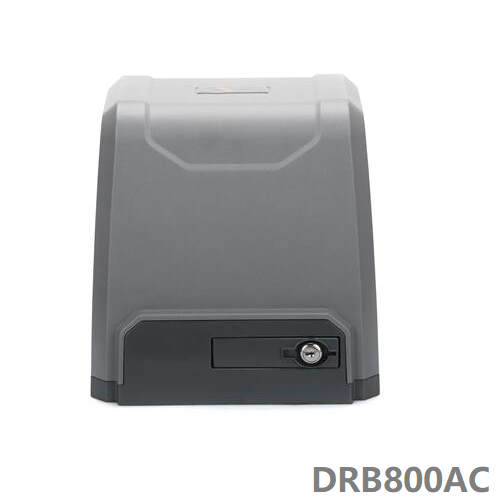

Deren DRB-AC sliding gate openers

Features :

Model	DRB600AC-G	DRB600AC-CH	DRB800AC	DRB1000AC	DRB1500AC	DRB2000AC
External size(mm)	260251192mm（HLW）		280271228mm（HLW）
Power supply	AC220V/50Hz;AC110V/60Hz
Max. loading weight	600kg	600kg	800kg	1000kg	1500kg	2000kg
Motor power	280W	280W	370W	400W	550W	750W
Output shaft height	46mm	46mm	50mm	50mm	50mm	50mm

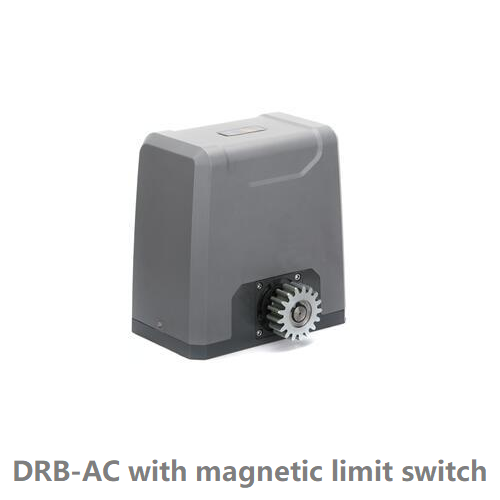

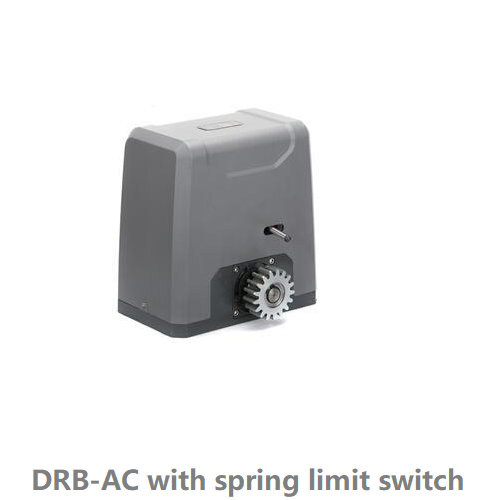

Limit switch	Magnetic or spring limit switch
Gate moving speed	13m/min	13m/min	11-13m/min	11-13m/min	11-13m/min	11-13m/min
Remote control range	≥30m	≥30m	≥30m	≥30m	≥30m	≥30m
Recording of up remotes	25	25	25	25	25	25
Remote Frequency	433.92Mhz	433.92Mhz	433.92Mhz	433.92Mhz	433.92Mhz	433.92Mhz
Work duty	S2 15mins	S2 15mins	S2 20mins	S2 20mins	S2 20mins	S2 20mins
Working noise	≤58dB	≤58dB	≤58dB	≤58dB	≤58dB	≤58dB
Working temperature	-20℃~70℃	-20℃~70℃	-20℃~70℃	-20℃~70℃	-20℃~70℃	-20℃~70℃
Driving mode	Gear	Chain	Gear	Gear	Gear	Gear
Package weight	9kg	16kg	14kg	15kg	16kg	17kg
