DRH hermetic door

  • Hermetic door clear opening width: 2350-4350mm adjustable
  • Door width 1000-2000mm adjustable
  • Closing force >70N
  • Hold opening time: 1-20s adjustable
  • Product description: Deren hermetic doors are specially designed to isolate spaces guaranteeing maximum hygiene.Finished in stainless steel or high pressure laminate which is available in a wide range of colours, as well
  • INQUIRY   EMAIL

Deren hermetic doors are specially designed to isolate spaces guaranteeing maximum hygiene. Finished in stainless steel or high pressure laminate which is available in a wide range of colors, as well as the combination of both. With bi-part, single-slide, double slide, automatic swing and manual slide, manual swing options available.

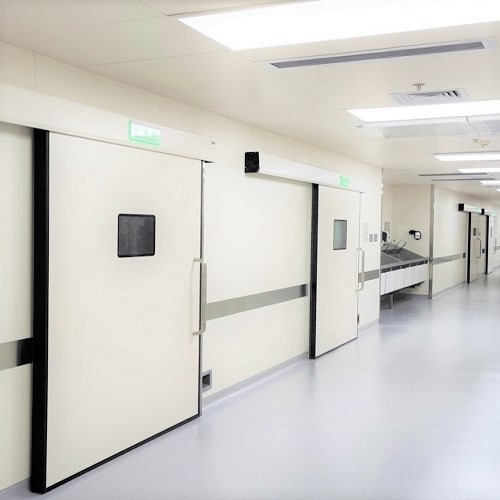

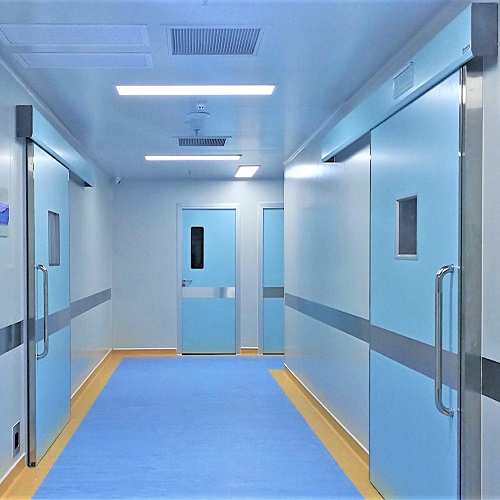

Deren hermetic door is widely used for clean environments such as cleaning rooms, hospitals, healthcare, hygiene rooms, laboratories, pharmaceutical industry and other facilities require tight sealing function.

Features:


Models:

DRH01-S automatic hermetic door-surface-mounted with Dunkeren Motor directly installed on to the wall

Max. door weight: 150kg

Door width 1070mm-1570mm, clear height 2350-3350mm

Opening/closing speed: 250-500mm/s(adjustable)

Open delay time:2-20s(adjustable)

Closing force >70N

Manual open force<100N

Power consumption<150W


DRH02-S automatic hermetic door-surface-mounted

Max. door weight: 150kg

Door width 1070mm-1570mm, clear height 2350-3350mm

Opening/closing speed: 250-550mm/s(adjustable)

Open delay time:2-20s(adjustable)

Closing force >70N

Manual open force<100N

Power consumption<150W


DRH03-C automatic hermetic door-built-in type

Max. door weight: 150kg

Door width 1070mm-1570mm, clear height 2350-3350mm

Opening/closing speed: 250-550mm/s(adjustable)

Open delay time:2-20s(adjustable)

Closing force >70N

Manual open force<100N

Power consumption<150W


DRH04-S automatic sliding door- surface mounted

Opening/closing speed: 250-550mm/s(adjustable)

Open delay time:2-20s(adjustable)

Closing force >70N

Manual open force<100N

Power consumption<150W


DRH05-S ICU automatic sliding door- surface mounted

Opening/closing speed: 250-550mm/s(adjustable)

Open delay time:2-20s(adjustable)

Closing force >70N

Manual open force<100N

Power consumption<150W

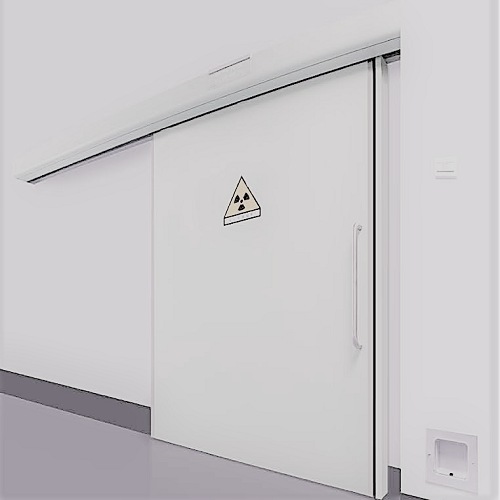

DRH06-X light automatic sliding door for X-ray shielding- surface mounted(1-3Mpa)

Opening/closing speed: 250-550mm/s(adjustable)

Open delay time:2-20s(adjustable)

Closing force >70N

Manual open force<100N

Power consumption<150W


DRH06-XH heavy-duty automatic sliding door for X-ray shielding- surface mounted(4-6MPa)

Max. door weight: 500kg

Door width 1000mm-2000mm, clear height 2000-4250mm

Opening/closing speed: 250-450mm/s(adjustable)

Open delay time:2-20s(adjustable)

Closing force >500N

Manual open force<200N

Power consumption<200W
