Products Features :
- Non-contact automatic body temperature detection, brush human face and perform high-precision infrared human temperature acquisition at the same time, fast and high effect
- Automatically identify unmasked personnel and provide real-time warning
- Support mid-range temperature measurement and real-time warning of high temperature
- Support temperature data SDK and HTTP protocol docking
- Automatically register and record information, avoid manual operation, improve efficiency and reduce missing information
- Support binocular live detection
- Unique face recognition algorithm to accurately recognize faces, face recognition time <500ms
- Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic ≥80dB
- Adopt Linux operating system for better system stability
- Rich interface protocols, support SDK and HTTP protocols under multiple platforms such as Windows / Linux
- IP34 rated dust and water resistant
- Support one Wiegand input or Wiegand output
- Supports fog through, 3D noise reduction, strong light suppression, electronic image stabilization, and has multiple white balance modes, suitable for various fields
- Support electronic voice broadcast (normal human body temperature or super high alarm, face recognition verification results)
|
Model |
iHM43-2T07-T2-EN |
|
Hardware |
|
|
CPU |
Hi3516DV300 |
|
System |
Linux operation system |
|
ROM |
16G EMMC |
|
Image sensor |
1/2.7" CMOS |
|
Lens |
4.5mm |
|
Monitor |
7inch TFT |
|
Monitor resolution |
600*1024 |
|
Display |
16:9 |
|
Temperature Measurement |
Infrared measurement,array testing module |
|
Audio output |
Speaker,8Ω/2W |
|
Camera Parameters |
|
|
Camera |
Binocular camera supports live detection |
|
Effective pixel |
2Mega pixel，1920*1080 |
|
Min. lux |
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 |
|
SNR |
≥50db(AGC OFF) |
|
WDR |
≥80db |
|
Face Recognition |
|
|
Height |
1.2-2.2 M, angle adjustable |
|
Distance |
0.5-2 Meters |
|
View angle |
Vertical ±40 degree |
|
Reco. Time |
＜500ms |
|
Function |
Support 22400 faces database and 100000 records |
|
Temperature |
|
|
Range |
30-45（℃） |
|
Accuracy |
±0.3（℃） |
|
Distance |
0.4M |
|
Response time |
＜500ms |
|
Interface |
|
|
Internet interface |
RJ45 10M/100M Ethernet |
|
Weigand port |
Support input/output 26 and 34 |
|
Alarm output |
1channel relay output |
|
USB port |
1USB port (Can be connected to ID identifier） |
|
General |
|
|
Power input |
DC 12V/3A |
|
Power consumption |
20W(MAX) |
|
Working temperature |
0℃ ～50℃ |
|
Humidity |
5～90%, no condense |
|

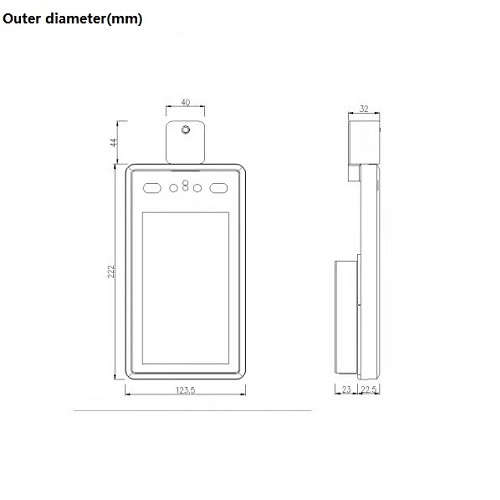

Dimension |
123.5(W) * 45.5(H) *266(L)mm |
|
Weight |
1.1 kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
