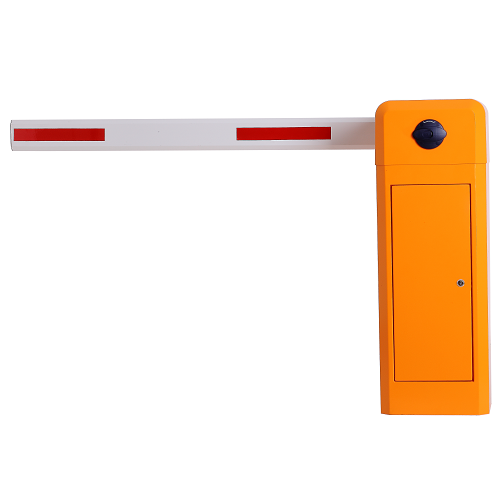

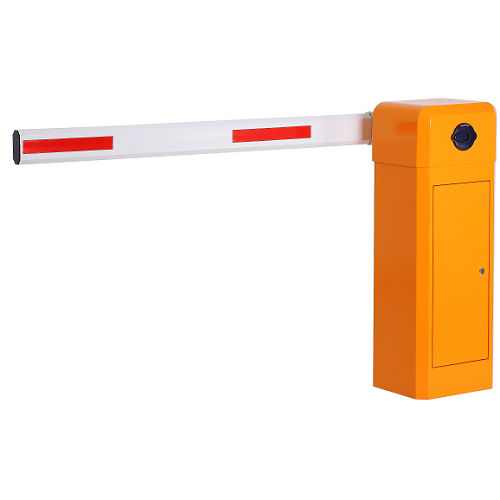

DRB115 Boom Barrier

  • Working voltage:220-240V/110V AC
  • Opening speed: 1.8s,3s,6s

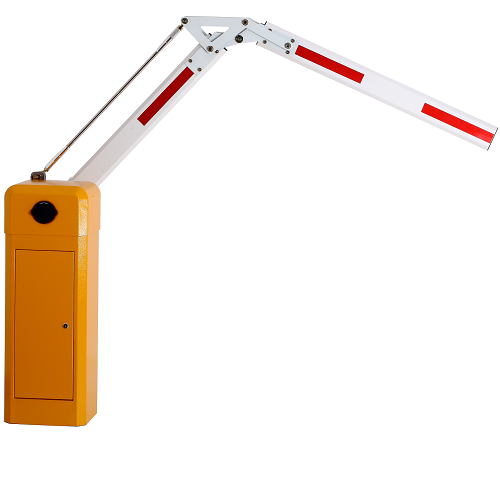

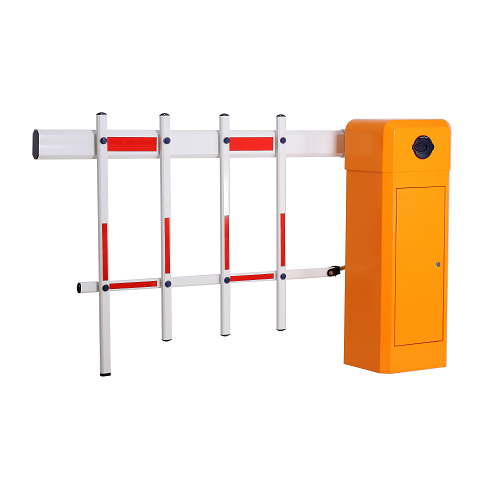

  • Arm type: Straight/Folding/Luminous
  • Max. Arm length:6m
  • Product description: Deren automatic boom barrier gate are appliable in commercial and industrial application, such as parking lots and garages to control the access of vehicles
  • INQUIRY   EMAIL


Products Features :


1.Key Features:

The barrier gate could be manually open by manual clutch when power off. and automatically reset when power on.

Compression balance spring is adopted to the motor

Automatic reversing when obstacle is met.

Optional: Infrared photocell, external vehicle loop detector, RS485 commnunication module

Switch signal interface for opening, closing and stopping.

◆Traffic light interface is built-in

◆ Built-in cooling fan device for high temperature

Automatic close is adjustable.


2.Electric Specifications

Electric Specifications

Power supply

AC220±10%,50Hz;AC110±10%,60Hz

Operating Temperature

-25℃~70℃

Relative Humidity

≤95%

Motor Power

150W

Communication Interface

IO

MCBF

3 mio cycles

IP Rating

IP54

Height of Boom

930mm

Dimension (L*W*H)

385x340x1070mm
