DRZ208 Barrier gate

  • DRZ208 Barrier Gate
  • DRZ208 Barrier Gate
  • DRZ208 Barrier Gate
  • DRZ208 Barrier Gate
DRZ208 Barrier GateDRZ208 Barrier GateDRZ208 Barrier GateDRZ208 Barrier Gate

DRZ208 Barrier Gate

  • Rapid opening:0.8-2s
  • Arm length<4m

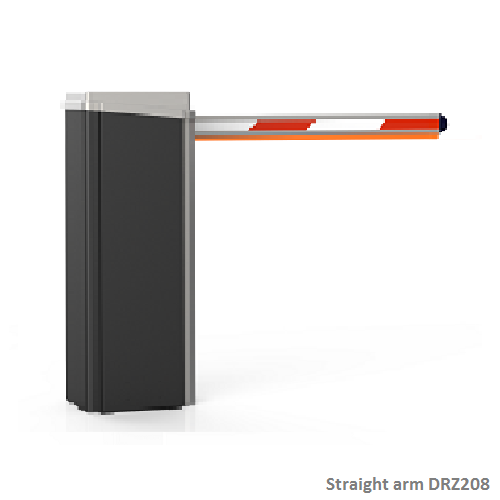

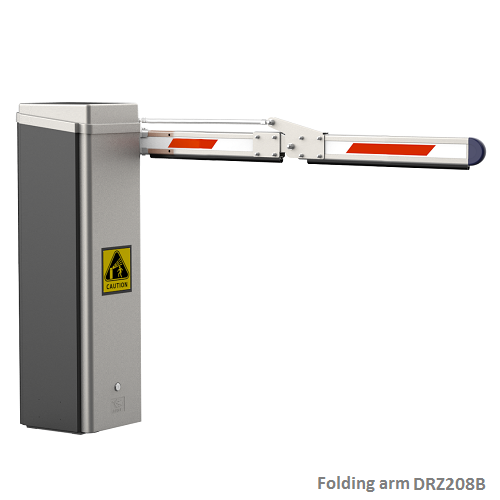

  • Arm type: Straight/Folding/Luminous
  • Dimension (L*W*H):365×322×1049mm
  • Product description: Deren smart boom barrier gates are appliable in commercial and industrial application, such as parking lots and garages to control the access of vehicles
  • INQUIRY   EMAIL


Products Features :

1.Rapid opening:
◆ Raising a four-meter boom pole in between 0.8-2s and lowering it quick

2. Robust:
◆ High-strength carbon steel splicing frame-overall structure is solid and reliable
◆ Brand-new spraying process-uniform color, high saturation, high hardness layer for improving corrrosion resistance and weather resistance
◆ Integrated movement design- gate runs stably and core components are resistant to wear
3. Safe&Reliable:

Boom auto rebound protection-detect obstruction and boom rebound
Operation jam protection-the control system can automatically reduce the voltage and
current to prevent the motor from being burned out
Comprehensive anti-crushing protections: infrared anti crushing, radar anti crushing, digital
anti crushing, loop detector for anti crushing
Digital control technology - protect gate operation in whole process, such as boom
limit position protection, ambient temperature compensation protection, anti-blocking
protection, illegal lifting alarm and record, etc.
4.Four Opening Methods

◆ Gate boom opened by loop detector
◆ Gate boom opened by PMS (“Parking Management System”) software
◆ Gate boom opened by remote control
◆ Gate boom opened by motor (There is a knob on motor and only be used in emergency)

Electric Specifications

Power supply

AC220±10%;AC110±10%

Operating Temperature

-25℃~70℃

Relative Humidity

≤95%

Motor Power

150W

Communication Interface

IO, TCP/IP

MCBF

3 mio cycles

IP Rating

IP54

Height of Boom

930mm

Dimension (L*W*H)

365×322×1049mm
